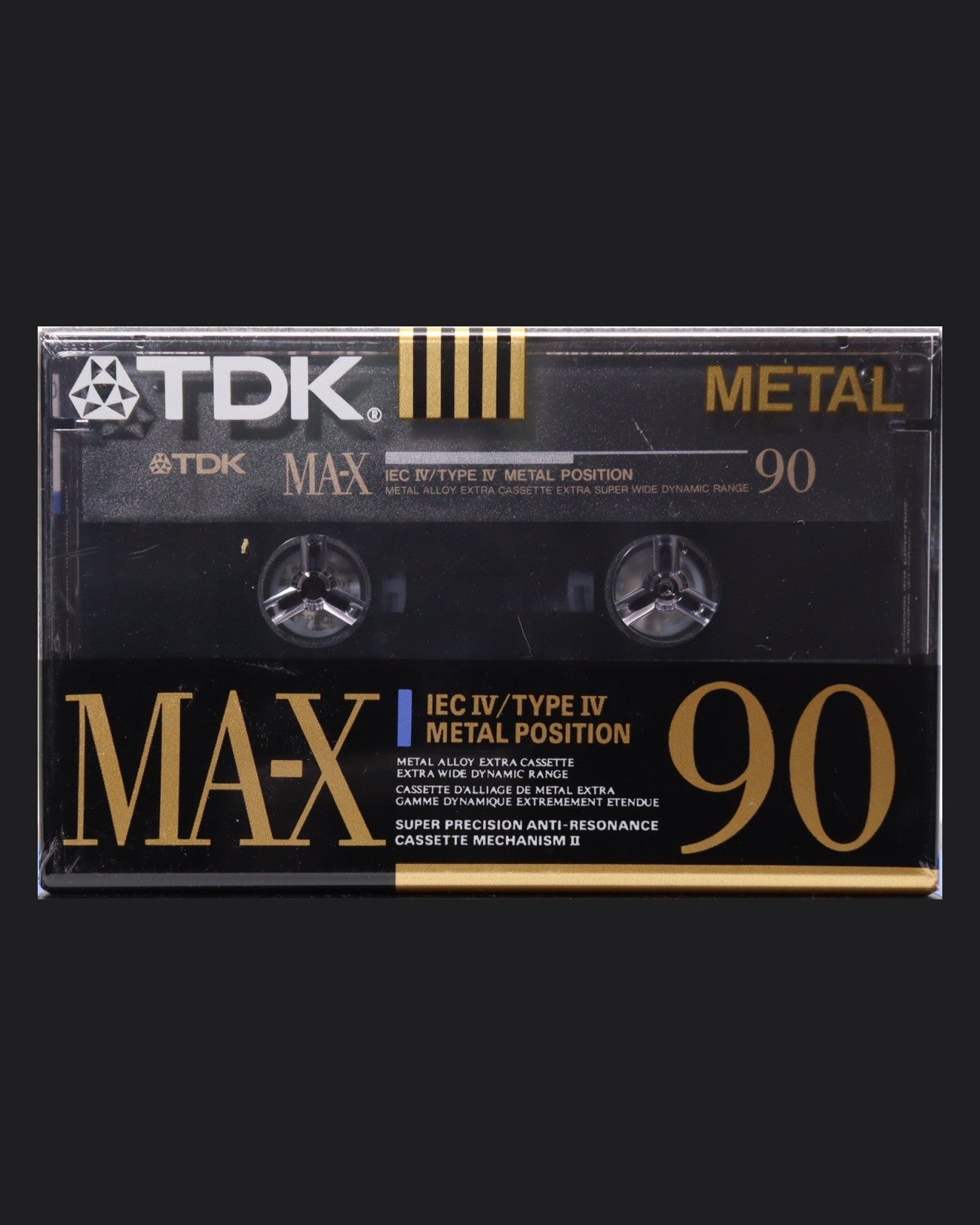

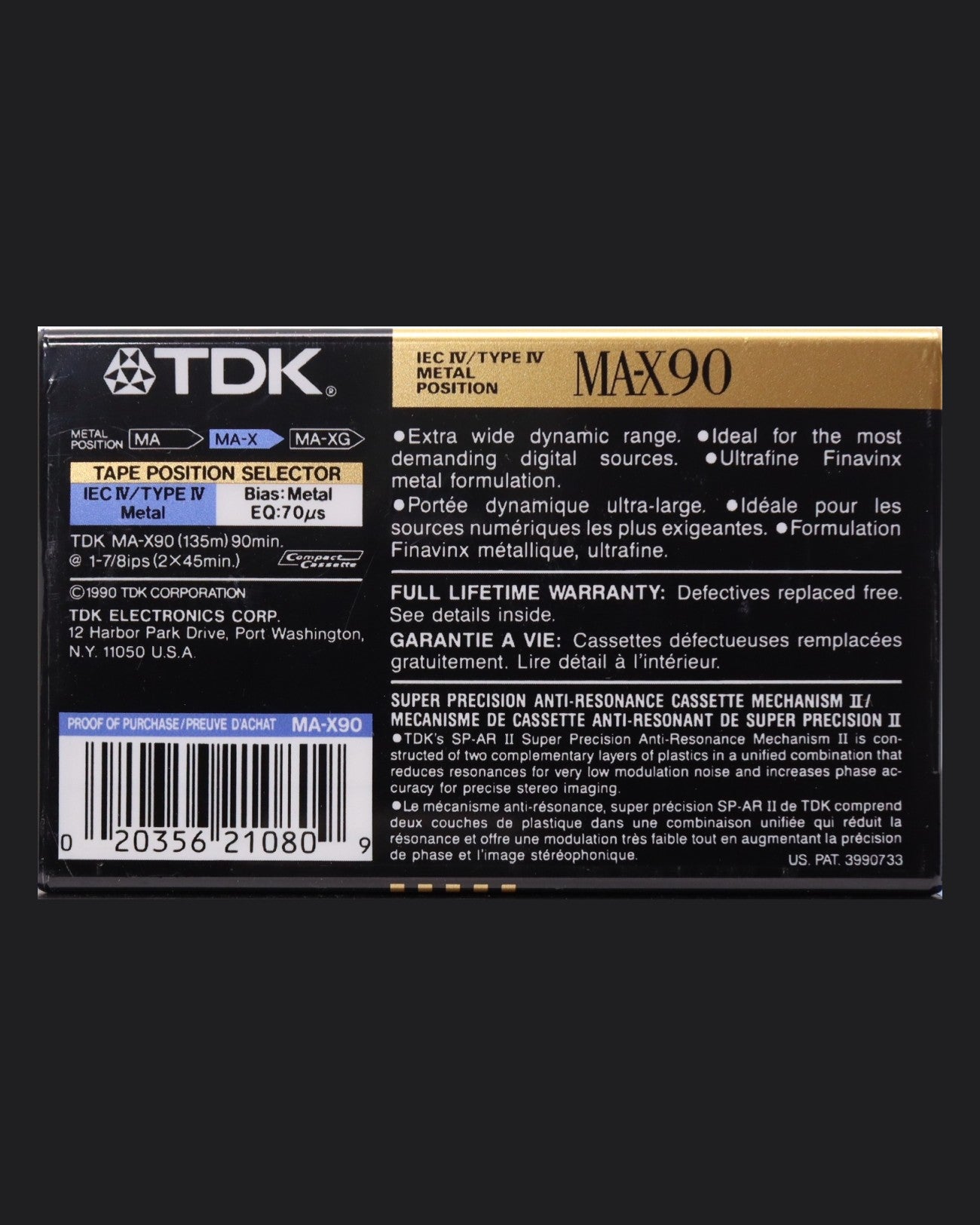

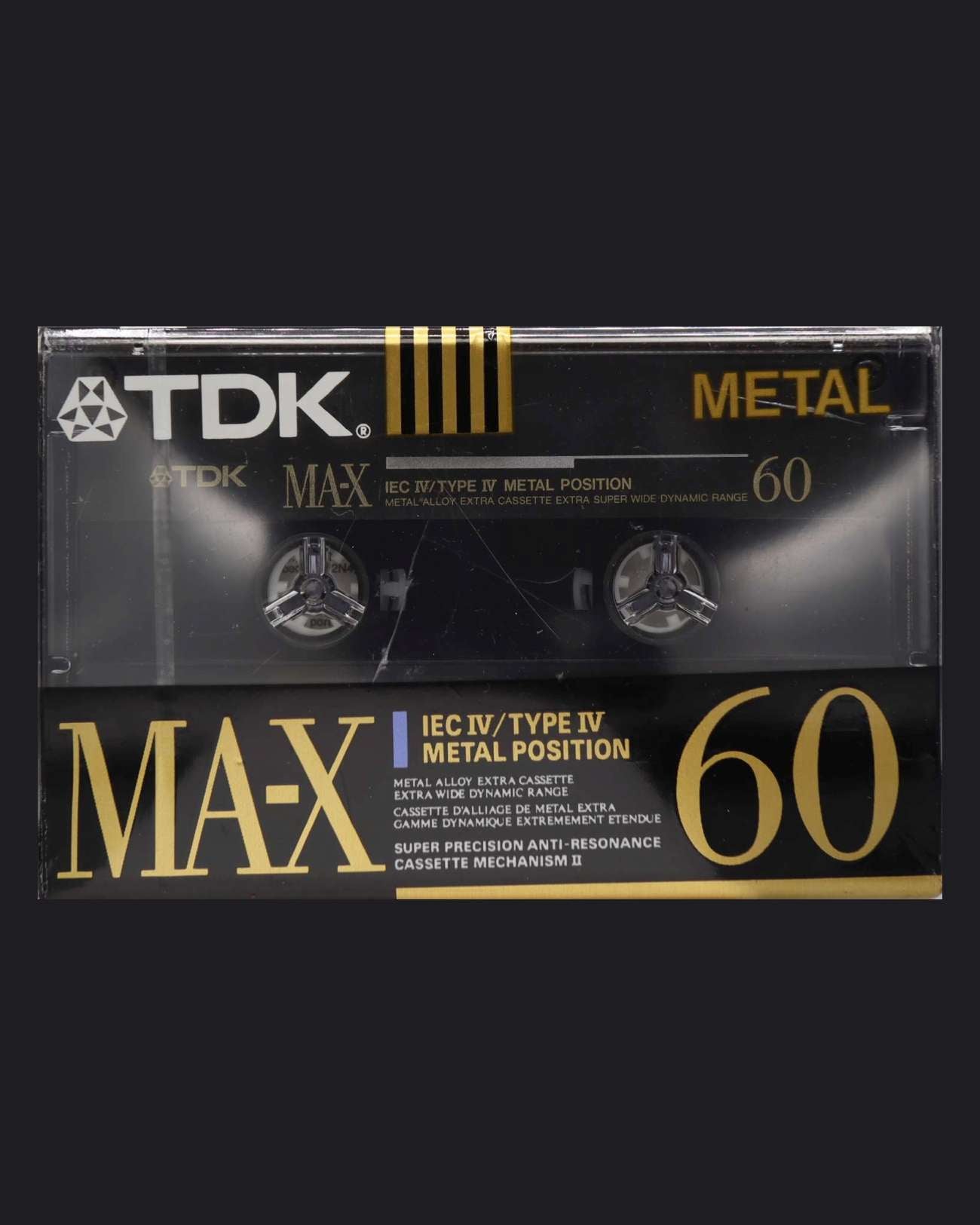

The TDK MA-X cassette tape, produced in the US from 1990 to 1991, is a high-quality audio cassette designed for professional and home recording applications. It features a robust metal shell and advanced magnetic particle formulation, ensuring reliable performance and durability.
TDK MA-X Technical Specifications
Magnetic Particle: Super Avylin (dual layer)
Coercivity: 620 Oe
Remanence: 1650 Gauss
Squareness Ratio: 0.83
Operating Bias: +1.0dB
Maximum Output Level (MOL) at 400Hz (1% distortion): +1.4dB
Maximum Output Level (MOL) at 400Hz (3% distortion): +6.3dB
Maximum Output Level (MOL) at 1kHz (3% distortion): +6.9dB
Saturated Output Level (SOL) at 10kHz: -0.1dB
Bias Noise: -53.1dB, -57.2dB(A)
Dynamic Range: 63.5dB
TDK MA-X Key Features
Dual Layer Magnetic Particle: Ensures high-quality audio reproduction.
Robust Metal Shell: Provides durability and protection.
Advanced Magnetic Formulation: Optimized for low noise and high dynamic range.
Improvements over Previous Generation
The TDK MA-X cassette tape builds upon the advancements of its predecessors, offering improved dynamic range and lower bias noise. The dual layer magnetic particle formulation enhances the overall audio quality, making it suitable for a wide range of recording applications.
