Formats & Standards

◦ Compact Cassette

The Compact Cassette is a consumer analog magnetic tape format using 1/8-inch tape, typically in a plastic shell. It supports stereo recording and playback and became a dominant music and home-recording format from the 1970s through the early 2000s.

◦ International Electrotechnical Commission (IEC) cassette standard

The IEC standard defines cassette tape types, recommended equalization, and reference playback/recording conditions. It helps ensure a tape recorded on one deck can play back predictably on another.

◦ Normal bias

Normal bias is the recording bias and EQ setting intended for Type I ferric tapes. Using the correct bias improves frequency response, reduces distortion, and stabilizes recording levels.

◦ High bias

High bias is the bias setting designed for Type II tapes. It supports better high-frequency performance and lower noise compared with normal bias when used with the correct tape formulation.

◦ Metal bias

Metal bias is the deck setting for Type IV tapes, which require stronger recording current and different EQ characteristics to achieve their highest headroom and lowest noise performance.

Tape Types & Formulations

◦ Type I (Ferric / IEC I)

Type I tapes use ferric oxide (Fe₂O₃) and are recorded with normal bias. They’re durable, widely compatible, and often sound warm, but usually have more hiss than Type II or IV. Some type I tapes known as "Super Ferric" use Ferric Cobalt formulation, similar to type II.

◦ Ferric oxide (Fe₂O₃)

Ferric oxide is a common magnetic coating for Type I tapes. It is stable and robust, making it well-suited for everyday recording and playback, especially on decks without advanced calibration.

◦ Type II (High Bias / IEC II)

Type II tapes use chromium dioxide or cobalt-doped ferric formulations. They typically provide improved treble response and lower noise than Type I when recorded with high bias and the correct EQ.

◦ Chromium dioxide (CrO₂)

CrO₂ is a Type II tape formulation known for strong high-frequency performance and reduced hiss compared with ferric tape. Some “Chrome” branded tapes use cobalt-doped ferric instead of true CrO₂. These are typically referred to as "CrO₂ position".

◦ Cobalt-doped ferric

Cobalt-doped ferric is a high-bias formulation often used in Type II tapes. It can deliver chrome-like performance while being easier to manufacture and compatible with typical Type II recording settings. Some tapes use Cobalt-doped ferric formulation adjusted to comply with IEC type I specifications.

◦ Type III (FeCr / IEC III)

Type III (FeCr) uses a dual-layer ferric/chrome-style formulation intended to combine strong bass with improved treble. It’s less common today and not supported by all decks, making compatibility more limited.

◦ Type IV (Metal / IEC IV)

Type IV tapes use metal particles with high coercivity, enabling higher recording levels, lower noise, and wider dynamic range. They require metal bias and are best on high-quality, well-calibrated decks.

◦ Metal particle

Metal particle tape uses pure metal particles as the magnetic medium. Compared to oxide formulations, it supports higher output and better treble retention, but demands stronger recording current and precise deck alignment.

Noise Reduction & Signal Processing

◦ Dolby NR (Noise Reduction)

Dolby NR reduces hiss using a companding process: it boosts and compresses certain frequencies during recording and reverses that change on playback. Systems include Dolby B, C, and S, each with increasing noise reduction when properly decoded.

◦ Dolby B

Dolby B is the most common consumer cassette noise reduction system. It reduces high-frequency hiss while remaining relatively tolerant of imperfect decoding, which is why many tapes remain playable on non-Dolby decks without sounding completely wrong.

◦ Dolby C

Dolby C provides stronger hiss reduction than Dolby B but is more sensitive to calibration. If played back without proper decoding, recordings can sound overly bright or compressed.

◦ Dolby S

Dolby S is the most advanced consumer Dolby system for cassettes. It can reduce noise more broadly across the spectrum and can sound “cleaner,” but it works best on high-end decks with accurate calibration and stable transport.

◦ HX Pro

HX Pro dynamically adjusts recording bias to preserve high-frequency detail, especially on loud passages. It affects recording only and requires no decoding on playback, unlike Dolby NR systems.

◦ dbx (cassette)

dbx is an aggressive companding noise reduction system that can greatly reduce hiss and extend dynamic range, but it is highly dependent on accurate encoding/decoding. Without proper playback decoding, dbx recordings can sound severely distorted.

◦ Pre-emphasis / De-emphasis

Pre-emphasis boosts certain frequencies during recording; de-emphasis reverses that boost on playback. Noise reduction systems and EQ standards rely on emphasis/de-emphasis to manage hiss and maintain tonal balance.

◦ Companding

Companding combines compression (during recording) and expansion (during playback) to reduce perceived noise. Dolby NR and dbx are both companding-based systems, but with different strength and tolerance to calibration error.

Recording, Bias & Calibration

◦ Bias

Bias is a high-frequency signal mixed into the audio during recording to improve linearity of magnetic recording. Correct bias reduces distortion and produces smoother frequency response, especially in the treble.

◦ Bias calibration

Bias calibration is the process of adjusting bias (and often level/EQ) to match a specific tape. Proper calibration improves clarity, reduces distortion, and helps the recording match the tape’s optimal operating point.

◦ Overbias

Overbias means applying slightly more bias than the “neutral” point. It often reduces distortion and hiss at the cost of some treble output, which can sound smoother on many tapes.

◦ Underbias

Underbias means too little bias. It can produce a brighter sound but tends to increase distortion, exaggerate treble harshness, and reduce consistency across recordings.

◦ Recording level

Recording level is the signal strength sent to the record head. Setting it too low increases hiss; too high increases distortion and saturation. Better tapes, especially Type IV and super ferric Type I, can handle very high recording levels without distortion.

◦ Headroom

Headroom is the margin between normal recording level and the point where distortion becomes obvious. Higher headroom lets you record “hotter” with stronger bass and less noise.

◦ Tape saturation

Tape saturation occurs when magnetic particles are fully magnetized and can’t accept more signal. This creates natural compression and harmonic distortion (“warmth”), but too much saturation can smear transients and reduce clarity.

◦ Test tone

A test tone is a known frequency used for calibration and troubleshooting. Common tones include 400 Hz or 1 kHz for level alignment and 10 kHz for azimuth or high-frequency performance checks.

◦ Reference fluxivity

Reference fluxivity is the standardized magnetic signal level used to calibrate playback/recording, measured in nWb/m. It defines what “0 dB” means on a calibrated cassette deck and supports consistent alignment across tapes and decks.

◦ Fluxivity

Fluxivity is the strength of the magnetic signal recorded on tape, typically measured in nanowebers per meter (nWb/m). It’s used in calibration tapes and service alignment to set consistent playback level.

◦ MOL (Maximum Output Level)

MOL is the highest level a tape can record at a given frequency (typically 1KHz) before distortion exceeds a defined threshold (often around 3% THD). Higher MOL allows louder recordings with stronger bass and improved signal-to-noise performance.

◦ SOL (Saturation Output Level)

SOL is the maximum level a tape can handle at high frequencies (commonly around 10 kHz) before compression or saturation becomes significant. Higher SOL generally means cleaner treble and better “air” at hot recording levels.

◦ Hysteresis

Hysteresis describes the lag between applied magnetic field and the tape’s magnetization response. Bias is used to overcome hysteresis effects and enable more linear, lower-distortion recording.

◦ Transduction

Transduction is converting energy from one form to another. In cassette recording, electrical signals become magnetic fields at the record head; during playback, magnetic patterns become electrical signals at the playback head.

Cassette Deck Mechanics & Transport

◦ Tape transport

The tape transport is the mechanism that moves tape across the heads at a constant speed. Transport stability directly affects wow/flutter, dropouts, and overall clarity.

◦ Capstan

The capstan is a precision shaft that pulls tape at a constant speed (about 1.875 inches per second). In high-end designs, capstan stability is a major factor in pitch accuracy and reduced flutter.

◦ Pinch roller

The pinch roller is the rubber wheel that presses the tape against the capstan. If it hardens, glazes, or becomes misaligned, the tape can slip, increasing wow/flutter and causing inconsistent playback.

◦ Flywheel

A flywheel adds rotational inertia to smooth speed variations in the transport, typically for the capstan shaft. Heavier, well-balanced flywheels generally improve speed stability and reduce flutter.

◦ Belt drive

Belt drive decks use rubber belts to transfer motor power. Aging belts can stretch or slip, causing slow speed, unstable pitch, or weak torque in fast-forward and rewind.

◦ Direct drive

Direct drive systems couple the motor directly to the transport for higher stability and less belt-related speed drift. These designs often produce lower wow/flutter when well engineered and maintained.

◦ Dual capstan

Dual capstan transports use two capstans to control tape tension and isolate the head area from shell vibration. This can reduce modulation noise and improve pitch stability, especially on worn or thin tapes.

◦ Closed-loop dual capstan

A closed-loop dual capstan design creates a controlled tape “loop” between two capstans, holding tape tension steady at the heads. This is a high-end approach that can minimize flutter and reduce tape path sensitivity to shell friction.

◦ Idler tire

The idler tire transfers torque to the reels for fast-forward and rewind. If the idler tire rubber hardens or slips, FF/REW can become weak, uneven, or noisy.

Heads, Alignment & Head Geometry

◦ Playback head

The playback head reads the tape’s magnetized pattern and converts it into electrical audio. Head quality and alignment strongly influence treble response, stereo separation, and noise.

◦ Record head

The record head creates the magnetic pattern on tape during recording. Its design, gap geometry, and bias conditions determine distortion, high-frequency response, and overall fidelity.

◦ Erase head

The erase head removes previous recordings using a high-frequency field. Poor erasure can leave residual “ghost” audio, noise, or uneven background levels.

◦ 3-head deck

A 3-head deck has separate erase, record, and playback heads. This allows real-time monitoring of the recording off the tape, making calibration and high-quality recording easier than on typical 2-head decks.

◦ 2-head deck

A 2-head deck combines recording and playback into one head plus a separate erase head. It’s common and can sound excellent, but usually offers fewer calibration and monitoring advantages than a 3-head design.

◦ Head gap

The head gap is the microscopic slit in a tape head that determines how finely it can read or write magnetic detail. Smaller gaps generally improve high-frequency resolution, which is especially important on the cassette’s relatively slow tape speed.

◦ Azimuth alignment

Azimuth alignment is adjusting the head angle so the head gap is perfectly oriented to the tape path. It is one of the most important adjustments for bright, clear playback with strong high-frequency response and accurate stereo imaging.

◦ Head demagnetizing

Demagnetizing removes residual magnetism from heads and metal tape-path parts. Magnetized components can increase noise and cause gradual high-frequency loss by partially erasing or smearing the tape’s recorded signal.

◦ Head wear

Head wear is physical erosion of head surfaces from tape contact. Excessive wear can cause loss of treble, reduced channel separation, and inconsistent contact, especially on older decks or heavily used players.

Audio Artifacts, Problems & Failure Modes

◦ Dropout

A dropout is a brief loss of signal caused by a defect, contamination, or damage in the magnetic coating. It often sounds like a momentary dip in volume or loss of treble.

◦ Print-through

Print-through is when a loud passage magnetically transfers to adjacent tape layers on the reel. It can produce faint pre-echo (before the sound) or post-echo (after the sound), especially on tapes stored tightly wound.

◦ Pre-echo

Pre-echo is a faint “preview” of a loud sound that occurs shortly before the actual sound, commonly caused by print-through from tape layers wound next to each other on the reel.

◦ Post-echo

Post-echo is a faint repetition that occurs after a loud sound, also typically caused by print-through. Storage conditions and time can increase its audibility on some tapes.

◦ Channel imbalance

Channel imbalance happens when left and right playback levels differ. It can be caused by head wear, azimuth misalignment, dirty tape path, or inconsistencies in the tape’s recorded signal.

◦ Phase error

Phase error occurs when stereo channels are not time-aligned, often due to azimuth misalignment. It can weaken center imaging and cause cancellations, especially in high frequencies.

◦ Crosstalk

Crosstalk is leakage of one channel into another. It can reduce stereo separation and is influenced by head design, alignment, tape quality, and deck electronics.

◦ Modulation noise

Modulation noise is noise that changes with the recorded signal, sometimes perceived as a “swishing” or “grainy” background. It can be influenced by tape formulation, transport stability, and recording level.

◦ Scrape flutter

Scrape flutter is high-frequency instability caused by the tape vibrating as it passes over guides and head surfaces. It can add a subtle roughness or “shimmer” and may be reduced by improved transport design or pad-lifter mechanisms.

◦ Tape skew

Tape skew is when tape runs at an angle rather than straight across the heads. It can cause treble loss, channel imbalance, and inconsistent contact, often tied to shell issues, guides, or uneven reel pack.

◦ Cinching

Cinching is tape slack that tightens abruptly, creating wrinkles or edge damage. It can happen after fast rewind/FF, especially on thin tape, and can cause repeated dropouts or audible damage in the affected section.

◦ Spoking

Spoking describes uneven tape pack on the reel that resembles “spokes.” It can increase friction and instability, and is often linked to fast winding, shell friction, or aged lubricants.

◦ Railroading

Railroading refers to one or more straight creases that run lengthwise along the tape, resembling train tracks. These creases can appear along part of the tape or extend across its entire length. Depending on how severe they are, where they occur, and how sensitive the deck is, railroading may result in audible sound quality issues.

Measurements, Datasheet Specs & Magnetic Properties

◦ Frequency response

Frequency response is the range of audible frequencies a tape and deck can record/play back at usable levels. On cassettes, high-frequency response is strongly affected by head alignment, tape type, and bias calibration.

◦ Signal-to-noise ratio (SNR)

SNR compares the desired audio level to the background noise level (hiss). Higher SNR means cleaner playback. Type II/IV tapes and noise reduction systems can improve SNR when used correctly.

◦ Dynamic range

Dynamic range is the difference between the noise floor and the loudest level before distortion. Better tapes and well-calibrated decks expand usable dynamic range.

◦ Coercivity

Coercivity measures a tape’s resistance to demagnetization. Higher coercivity (common in Type IV metal tapes) supports higher recording levels and better treble retention but requires stronger recording current from the deck.

◦ Retentivity

Retentivity is a tape’s ability to hold magnetization after recording. Higher retentivity helps preserve recorded signal strength and stability over time, especially in premium formulations.

◦ Remanence

Remanence is the residual magnetism left on tape after exposure to a magnetic field. In practical terms, remanence represents the recorded audio signal that the playback head reads.

◦ Harmonic distortion (THD)

Total Harmonic Distortion (THD) measures added harmonics created by the recording/playback process. As recording level approaches saturation, THD increases; MOL is often defined at a specific THD threshold.

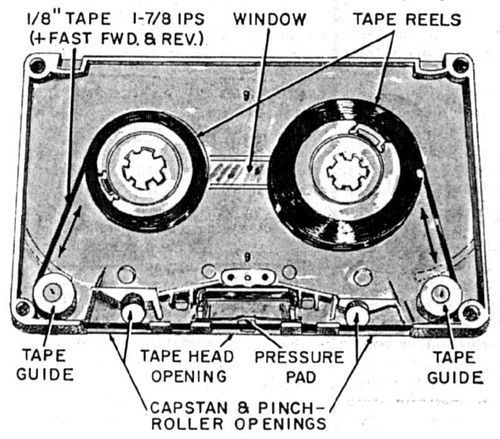

Cassette Shell, Parts & Tape Path Components

◦ Leader tape

Leader tape is non-magnetic tape at the beginning and end of a cassette. It protects the magnetic section from damage and supports smooth loading and winding without risking oxide loss at the ends.

◦ Pressure pad

The pressure pad is a felt pad inside the cassette shell that presses tape against the head for consistent contact. Worn or missing pads can cause muffled sound, dropouts, and unstable high-frequency response.

◦ Slip sheets

Slip sheets are low-friction liners inside the cassette shell that reduce drag and allow smoother tape movement. Better slip sheets can improve stability and reduce transport strain.

◦ Tape guides

Tape guides steer tape through the correct path and maintain alignment across the heads. Dirty or worn guides can increase friction, contribute to skew, and degrade clarity.

◦ Tape head pad lifter

A pad lifter mechanism lifts the cassette’s pressure pad during playback/recording so the deck controls tape-to-head contact more precisely. This can reduce friction-related issues and is sometimes used in high-end transports. Nakamichi were known to use such lifters.

Care, Maintenance & Tape Condition

◦ NOS (New Old Stock)

NOS means vintage tapes that were never used and often remain sealed. NOS is valued because the tape has minimal wear, but storage conditions still matter; heat and humidity can affect lubricants and shells over time.

◦ Oxide shedding

Oxide shedding is loss of the magnetic coating from the tape backing. It can cause permanent signal loss, contamination of the tape path, and repeated dropouts. Severe shedding often makes a tape unsafe to play.

◦ Sticky-shed syndrome

Sticky-shed syndrome is binder breakdown that makes tape sticky and prone to stalling or depositing residue. It’s rare in compact cassettes compared with reel-to-reel, but it can apply to certain formulations or storage-damaged tapes.

◦ Demagnetizing (maintenance)

Demagnetizing is using a demagnetizer tool to remove residual magnetism from heads and tape-path metal parts. Done correctly, it can reduce noise and protect high-frequency detail by preventing gradual signal smearing.

◦ Cleaning the tape path

Tape path cleaning removes oxide, residue, and dust from heads, capstan, pinch roller, and guides. A dirty tape path can cause muffled sound, dropouts, and speed instability, and it can accelerate wear on both tapes and the deck.

Collector & Marketplace Terms

◦ Factory sealed

Factory sealed means the tape is still in its original wrap and has not been opened. This usually implies no prior recording or handling, which collectors prefer, though storage conditions still influence performance.

◦ Opened but unused

Opened but unused describes a tape with packaging removed but no prior recording. It may have minimal handling wear, but can still perform like NOS if stored well. We offer opened unused tapes as B Stock.

◦ Bulk erased

Bulk erased means previous recordings were removed using a strong degausser. It can restore recordability, but doesn’t reverse physical wear, oxide loss, or shell friction issues.

◦ Previously recorded

Previously recorded tapes have existing audio recorded onto them at least once. Recording history can affect noise, dropouts, and consistency, depending on tape quality, deck alignment, and how many times the tape has been reused. Ultra Ferric offers a large selection of previously recorded tapes as C stock collection.

FAQ

◦ What is azimuth on a cassette deck?

Azimuth is the angle of the cassette deck’s playback/record head gap relative to the tape path. If azimuth is even slightly off, high frequencies drop, stereo imaging blurs, and phase issues can appear. Correct azimuth aligns the head so it reads both channels cleanly and restores treble detail.

◦ What is wow and flutter in analog audio?

Wow and flutter measure a tape deck’s speed stability. Wow is slow speed variation (pitch “wobble”), and flutter is rapid variation (pitch “shimmer”). Common causes include worn belts, glazed pinch rollers, dirty capstans, or motor/transport problems. Lower wow/flutter means steadier pitch and cleaner playback.

◦ What is Type II (High Bias) cassette tape?

Type II (High Bias / “Chrome”) tapes use chromium dioxide (CrO₂) or cobalt-doped ferric formulations and typically use 70 μs EQ. Compared with Type I, they offer lower hiss and better high-frequency detail. They’re a go-to choice for high-quality mixtapes and many Portastudio/multitrack recordings.

◦ What is Dolby Noise Reduction (B, C, and S)?

Dolby Noise Reduction is a companding system that reduces tape hiss by boosting certain frequencies during recording and reversing the process on playback. Dolby B is the most common; Dolby C provides stronger hiss reduction but needs accurate decoding; Dolby S is the most advanced consumer system and works best on well-calibrated decks.

◦ What is tape bias and how does it affect sound?

Tape bias is an inaudible high-frequency signal added during recording to linearize magnetic recording and reduce distortion. Proper bias improves clarity and frequency balance. Overbias can smooth treble and lower distortion; underbias can sound brighter but harsher and less accurate. Bias adjustment helps match the deck to a specific tape.

◦ Why do some cassettes sound muffled?

Muffled sound is commonly caused by azimuth misalignment, a dirty tape path, a worn pinch roller, head wear, or a tape recorded on a different deck with mismatched alignment.
