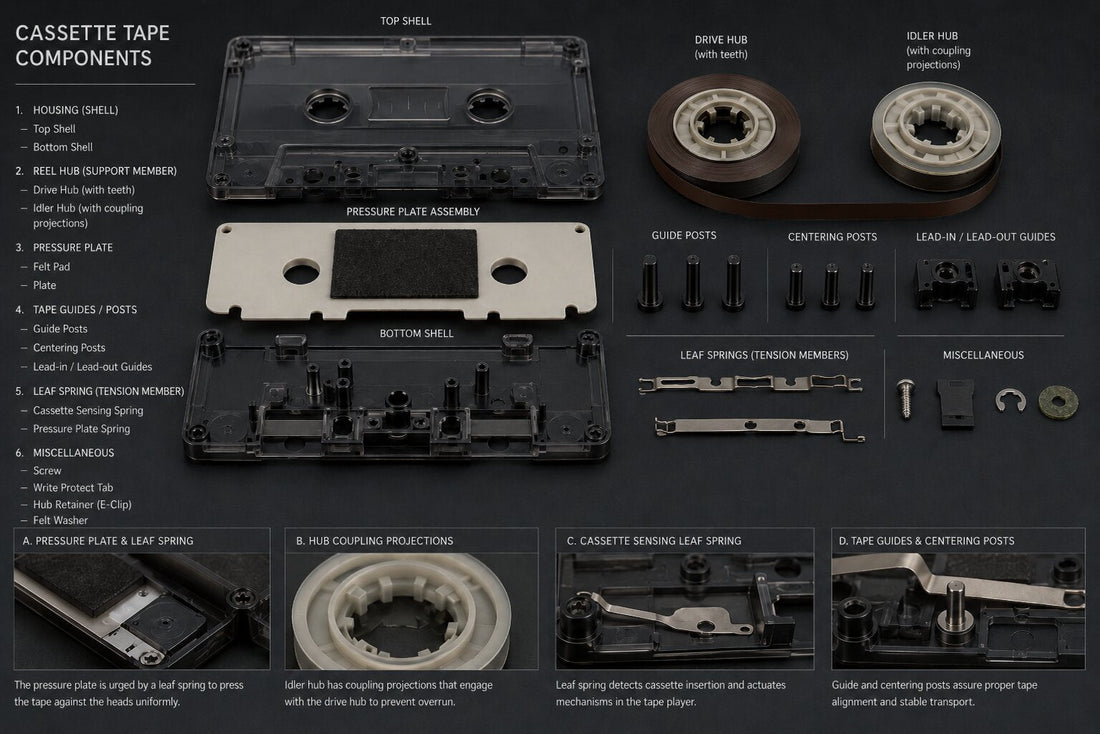

Cassette Tape Parts Diagram: Internal Anatomy Explained
A complete technical breakdown of every compact cassette component - from the outer shell and slip sheets to the magnetic oxide ribbon and pressure pad assembly - and how each part directly affects audio performance.
To the uninitiated, the compact cassette looks like a simple plastic brick. Beneath that shell lies a precisely engineered mechanical system held to micro-tolerances. When you press play on a quality three-head deck, you initiate a complex choreography of friction management, tension control, and tape-to-head alignment - where a deviation of mere micrometers can ruin acoustic performance.
Whether you are archiving master tapes, restoring a vintage deck, or troubleshooting a jammed favorite cassette, understanding the internal mechanics is essential. If a tape is binding, dropping high frequencies, or winding unevenly, the problem almost always traces to a failure in a single specific component. This guide identifies them all.
The Eight Internal Components
The plastic housing provides the structural architecture that keeps all internal components in perfect dimensional alignment. It must resist warping and maintain strict tolerances so the cassette seats correctly in a deck's transport mechanism.
Two construction methods exist in vintage cassettes: sonic welding (high-frequency acoustic vibrations permanently fuse the shell halves) or machine screws (four to five precision screws hold the halves together). This distinction is critical for repairability.
Positioned between the tape packs and the inner shell walls are two thin low-friction plastic liners. Premium manufacturers such as Maxell and TDK custom-creased or rippled their slip sheets to act as miniature springs - a detail many competitors skipped entirely.
Common materials: graphitized Teflon, polyolefin films, or specialized antistatic compounds.
The two internal cylinders around which the tape winds. Hub teeth engage precisely with the deck's supply and take-up spindles. The tape ribbon attaches via a small removable plastic C-clamp or peg anchor.
The clear or frosted plastic strip spliced to the very beginning and end of the magnetic tape ribbon. It contains no magnetic oxide coating and is physically thicker and tougher than the recording ribbon to absorb mechanical shock.
Many premium leaders include textured cleaning strips or colored timing lines to indicate tape orientation before the oxide section begins.
A thin polyethylene terephthalate (PET) base film coated with a precision layer of magnetic particles suspended in a polymeric binder. The formulation and surface smoothness of the oxide layer entirely determine frequency response, saturation limits, and signal-to-noise ratio.
Located at the center-bottom opening of the cassette shell - the small window the deck's head actually contacts. A felt pad is bonded to a copper-alloy leaf spring. When the cassette loads, the deck's playback or record head enters this opening, and the spring pushes the tape ribbon into firm, uniform contact against the head gap.
Without adequate pressure pad contact, high-frequency signals suffer immediate and catastrophic dropout due to spacing loss. A missing or detached pad produces muffled, hollow, abnormally quiet playback - often mistaken for a failing deck rather than a failing tape.
Flanged plastic rollers seated on precision metal or plastic pins in the front left and right corners of the shell. They control the tape path as it exits the supply pack and enters the head zone, preventing vertical drift and protecting tape edges from fraying.
The breakable plastic squares on the cassette's top edge. A mechanical lever inside the deck detects their presence. If a tab is broken away, the deck physically blocks the record function from engaging - a purely mechanical data protection system requiring no electronics.
Magnetic Tape Formulations: Type I vs. Type II vs. Type IV
The IEC standardized cassette tape into three bias classes. Each demands different deck calibration settings and delivers fundamentally different audio characteristics. Understanding which tape you have is prerequisite to setting the correct bias, EQ, and sensitivity on any serious deck.
| Type | Oxide / Particle | Bias | Strengths | Limitations | Typical Use |
|---|---|---|---|---|---|
|
Type I Ferric |
Fe₂O₃ (gamma iron oxide) | Normal (120 µs EQ) | Warm bass, high output, widely compatible | Higher noise floor, limited HF extension | General recording, speech, budget music |
|
Type II Chrome / Cobalt |
CrO₂ or cobalt-modified Fe₂O₃ | High (70 µs EQ) | Superior HF response, lower noise, wider dynamic range | Requires high-bias deck setting; more expensive | Music, audiophile recording, archival |
|
Type IV Metal |
Pure metal particles (Fe, Fe-Co alloy) | Metal (70 µs EQ, separate bias level) | Maximum headroom, highest coercivity, lowest noise | Requires dedicated metal-capable deck; premium price | High-fidelity music mastering, live recording |
Note: Type III (ferrichrome, dual-layer) was a short-lived format that never achieved market standardization and is absent from most modern deck specifications.
Troubleshooting & Restoration
A mechanically failing tape does not necessarily mean a lost recording. Most common failures are repairable with basic tools. Here are the three most common interventions.
Fix 1: Replacing a Detached Pressure Pad
Harvest a pad from a low-value donor tape that shares a similar shell format. Do not play the tape until the repair is complete.
Dab a single drop of cyanoacrylate onto the tip of a toothpick. Apply it to the center of the intact leaf spring - not the surrounding shell material.
Using fine tweezers, position the felt pad and apply light pressure for 60 seconds. Allow full curing time (minimum 10 minutes) before loading into a deck.
Fix 2: Resolving a Jammed or Tightly-Wound Tape
Hold it horizontally and firmly tap each face against a hard table surface three to four times. This reseats shifted tape pack layers.
Insert a manual rewinder or a hexagonal pen into one hub and hand-wind the tape fully from end to end. This normalizes internal winding tension before returning to a motorized deck.
Fix 3: Performing a Shell Transplant
Carefully crack the welded seams using a hobby knife. Work slowly around the perimeter to avoid slicing into the tape pack inside.
Use tweezers to lift both supply and take-up hubs simultaneously, keeping the tape loop continuous.
Drop the assembly into an open, clean, screwed donor shell. Verify the tape routes correctly around guide rollers, over slip sheets, and in front of the pressure pad before closing.
Screw the new housing shut. Manually advance the tape one full revolution to confirm smooth transport before playing on a deck.
Frequently Asked Questions
A compact cassette contains eight functional components: the outer plastic shell, two low-friction slip sheet liners, two tape hubs with C-clamp anchors, a clear leader tape, the magnetic tape ribbon, a spring-loaded pressure pad, two flanged guide rollers, and two write-protect tabs. Each part plays a precise mechanical or audio role, and failure in any one component affects playback quality.
Sonically welded shells are permanently fused using high-frequency acoustic vibrations - they must be cracked open destructively for any internal repair. Screwed shells use four or five precision machine screws, allowing non-destructive disassembly, cleaning, and parts replacement. Restorers and collectors heavily prefer screwed shells for this reason.
Wow and flutter (speed instability) is most commonly caused by degraded or warped slip sheets that allow uneven friction against the tape pack. It can also result from hub eccentricity, dirty or worn capstan and pinch roller in the deck, or a jammed tape pack caused by telescoped winding layers. The slip sheets are the first cassette-side component to investigate.
Sticky shed syndrome (formally: binder hydrolysis) occurs when the polyurethane binder holding the magnetic oxide particles to the PET base film absorbs moisture and breaks down. The tape becomes tacky, and the oxide layer physically sheds off onto the deck's playback head, causing immediate clogging and signal loss. It primarily affects recordings made between the mid-1970s and mid-1990s on tapes from certain manufacturers. Affected tapes can sometimes be temporarily restored by baking at low temperatures to drive out moisture before digitization.
Yes. Cover the open slot on the top edge of the cassette with a piece of adhesive tape. This blocks the mechanical lever inside the deck that detects the absent tab, re-enabling the record function. Standard cellophane or masking tape works reliably for this purpose.
